Suitable for:

• DT 797
• DT 790



  DT 790 / DT 797

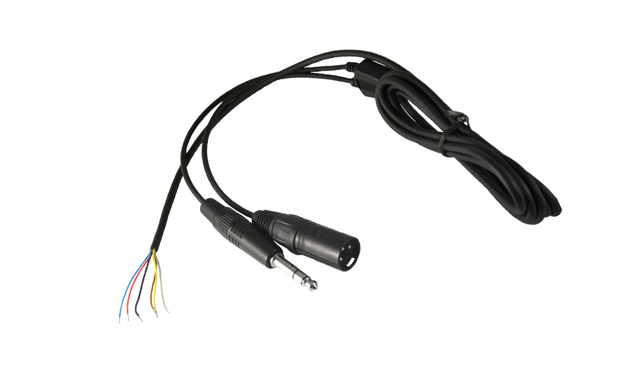

  Connection cable - new wire assignment

  Note on connecting a replacement cable

  With the replacement cable, the wire colors no longer correspond to the colors of the originally installed connection cable. Therefore, the following assignment must be used for correct connection.

  Color assignment

  Original wire color	New wire color	Connection
  Yellow	Red	same position as previous Yellow
  Gray	Orange	same position as previous Gray
  Brown	Blue	same position as previous Brown
  Black	Black	unchanged
  Red	Green	same position as previous Red
  Blue	Yellow	same position as previous Blue



  Important: The position of the original wire on the circuit board is decisive. The new wire is connected to the exact position where the old wire assigned above was previously connected.



  Summary: Yellow → Red | Gray → Orange | Brown → Blue | Black → Black | Red → Green | Blue → Yellow
